Understanding The Challenges In Designing Automotive Heater Valves

Designing automotive heater valves presents several challenges due to the complexity of modern vehicle heating systems. As vehicles become more advanced with hybrid and electric powertrains, the role of the heater valve has expanded beyond merely controlling cabin temperature. Today, heater valves work in conjunction with various components, including turbo boost pressure solenoids, vehicle electric water pumps, and auxiliary coolant water pumps. These components all contribute to maintaining engine temperature and enhancing overall vehicle performance. In this article, we will explore the challenges faced when designing automotive heater valves and how they interact with other crucial systems.

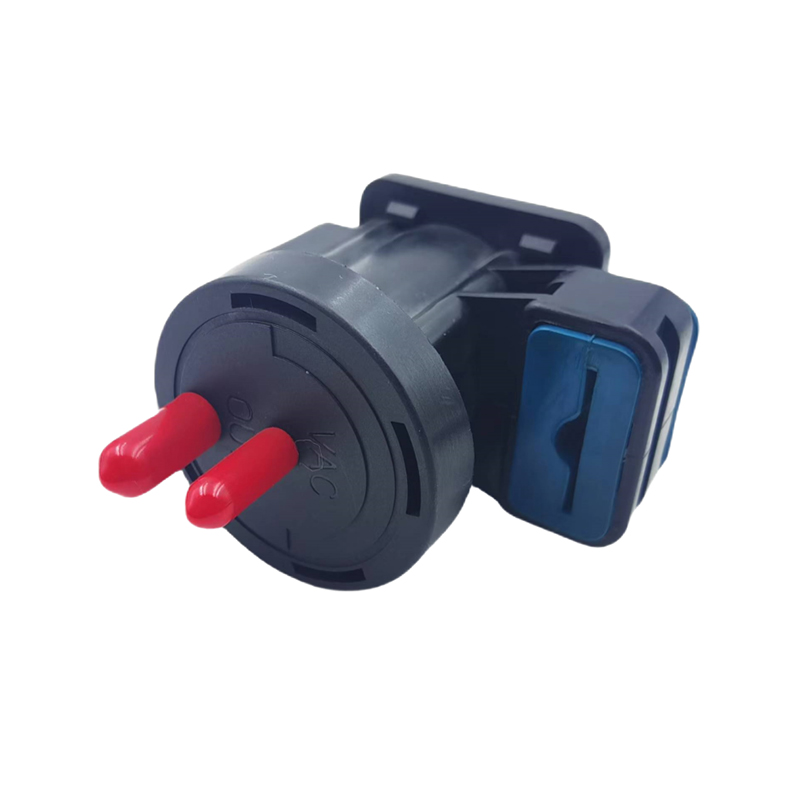

Turbo Boost Pressure Solenoid and Heater Valve Integration

The turbo boost pressure solenoid plays a pivotal role in regulating the turbocharger's boost pressure, helping to optimize engine performance. This is important for maintaining consistent power output and improving fuel efficiency. The integration of the turbo boost pressure solenoid with the heater valve is a critical design consideration.

A heater valve is responsible for controlling the flow of coolant to the heater core, which, in turn, regulates the heat produced in the cabin. However, the vehicle's turbocharged engine generates a significant amount of heat, which needs to be efficiently managed. The challenge arises when the turbo boost pressure solenoid works in tandem with the heater valve to ensure that the heat generated by the turbocharger does not negatively impact the vehicle's heating system. A poorly designed valve could cause inefficient heat distribution, pilot to either an overheated engine or insufficient cabin heating.

To address this, manufacturers must design heater valves that can handle a wide range of temperatures, from the bad heat produced by the turbocharger to the lower temperatures in the cabin. Additionally, the heater valve must work seamlessly with the turbo boost pressure solenoid to ensure that the heat is distributed efficiently throughout the vehicle.

Vehicle Electric Water Pump: A Key Factor in Heater Valve Design

Another challenge in designing automotive heater valves lies in the integration with the vehicle's electric water pump. Electric water pumps are commonly used in modern vehicles, especially in hybrid and electric models. Unlike traditional engine-driven water pumps, electric water pumps are controlled by the vehicle's electronic control unit (ECU), allowing for better control of coolant flow based on real-time engine demands.

The heater valve must be designed to work with the electric water pump to control the flow of coolant effectively. This requires a delicate balance, as the valve needs to adjust coolant flow based on the pump's performance and the specific needs of the engine and cabin. For example, during cold starts, the heater valve must allow for quick circulation of coolant to warm up the cabin. However, during normal driving conditions, the valve must ensure that the coolant is circulated efficiently through the engine and cooling system to prevent overheating.

The challenge lies in designing a heater valve that can adapt to varying conditions while maintaining the right level of coolant flow. If the valve cannot accurately respond to changes in the electric water pump's performance, it could advance to poor engine cooling or inadequate heating in the cabin.

Auxiliary Coolant Water Pump: Ensuring Efficient Flow to the Heater Core

In many vehicles, particularly those with more advanced cooling systems, an auxiliary coolant water pump is used to circulate coolant to the heater core when the engine is not running at good temperatures. This is especially important for electric vehicles, where the engine may not run constantly, and maintaining cabin comfort without running the main engine pump is essential.

The auxiliary coolant water pump helps maintain coolant circulation when the main engine-driven pump is not active. The heater valve must be designed to handle the demands of this additional coolant flow while still controlling the temperature within the cabin. This requires careful design to ensure that the valve can regulate the flow of coolant from both the auxiliary pump and the main electric water pump.

The challenge here is ensuring that the heater valve is responsive enough to handle varying coolant flows, whether it's from the auxiliary pump or the electric water pump. Any issues with this integration could advance to inconsistent cabin temperatures or insufficient engine cooling, both of which can compromise the vehicle's overall performance.

Balancing Performance, Durability, and Cost

Materials used in heater valve construction must be resistant to corrosion, temperature fluctuations, and wear. Often, manufacturers turn to high-grade metals and polymers, but these can be expensive. Striking the right balance between cost and performance is crucial for automakers, as it directly affects vehicle pricing and consumer satisfaction.

Designing automotive heater valves is a complex task that requires careful consideration of various components, such as turbo boost pressure solenoids, vehicle electric water pumps, and auxiliary coolant water pumps. These systems must work together seamlessly to maintain engine efficiency, improve fuel economy, and ensure passenger comfort. Engineers must overcome several challenges, including managing heat from the turbocharger, coordinating with electric water pumps, and ensuring efficient coolant flow. Additionally, finding the right balance between performance, durability, and cost is crucial for producing a high-quality product.
